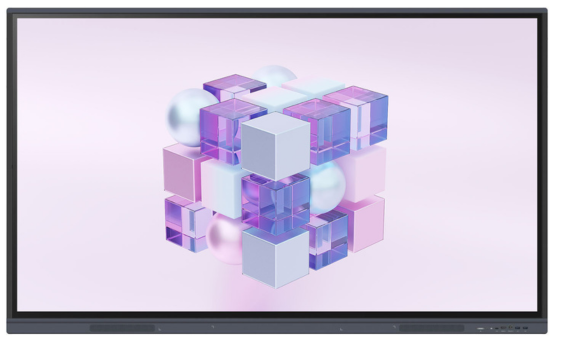

ASIATOUCH 75" Interactive Flat Panel
- Zero gap Bonding technology,low parallax writing and wider viewing angles
- 3mm anti-glare toughened glass with high haze OC for clearer display against ambient light interference
- Light-sensitive brightness adjustment and DC dimming support (de-flashing) for a more eye-protectiondisplay
- 4K Ultra HD display ,support full channel 4K UI display
- Front USB3.0*2 + on-board USB3.0*2, supports switching with channels
- Support for Wireless projection
- ±1mm High precision infrared touch control for smooth writing
- Supports dual pens and dual colour displays for easy multi-person collaboration
- Wi-Fi6 support, dual-band 2.4G/5G, AP+STA operating mode
- Intelligent wake-up for HDMI/VGA/RS232 channels & network signal input in standby mode
- One network support, Android and OPS both on Gigabit network
- Support network sharing
- High level welcome application, enriching the live interactive experience with great fun
- Split screen ,parallel tasks and wider scenes
- New hoverball mode for quick customisation of features.
- Eye protection, lock screen, touch lock and other tools.

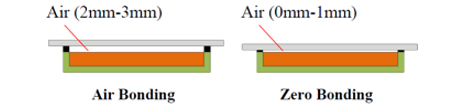

Zero Bonding Features
Groundbreaking Zero Bonding
The Upgrade of the bonding technology makes the air gap between the covered glass and the LCD panel almost invisible to improve the overall performance of the display to another level, physically and technically.

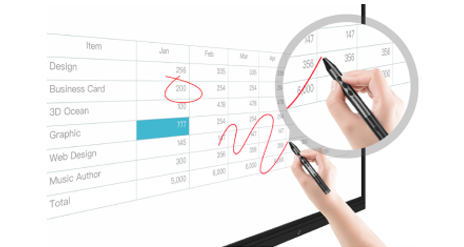

Higher readability & smoother writing
Zero bonding technology brings us a higher-definition visual experience by reducing parallax and enhancing readability. In addition, high proximity between fingertip and writing trail makes writing smoother as natural as you are writing on the paper.
Benifit of Interactive Flat Panel for Smart Class
Enhanced Engagement
The large touch-screen display and interactive features of an IFP can help to engage students and keep them focused during lessons.
Improved Collaboration
An IFP can support multiple users at once, enabling students to work together on projects, participate in group activities, and share their own work.
Dynamic Presentations
Teachers can use the IFP to present multimedia content and interactive lessons, making the learning experience more dynamic and engaging.
Increased Flexibility
An IFP can be used for a variety of purposes, including presentations, video conferencing, digital whiteboarding, and more, providing teachers with greater flexibility in the classroom.
Improved Accessibility
An IFP can provide students with visual aids and accessibility features, such as text-to-speech and closed captioning, that can help to accommodate different learning styles and needs.
Efficient use of time
By providing interactive and multimedia content, teachers can use less time to explain concepts and students can grasp the material faster.
Cost Effective
Compared to traditional classroom technologies such as whiteboards and projectors, an IFP can provide a more cost-effective solution for a smart classroom, as it combines several functions in one device.
Description & Specification
| Display Parameter | |
|---|---|
| LCD Size | 75inch |
| Type of Panel | DLED |
| Respond Time | 8ms |
| Visual Ratio | 16:9 |
| Max Visual Area | 1649.664(H)×927.936(V)mm |
| Resolution | 3840（H）×2160（V） |
| Pixel pitch | 0.4296×0.4296mm |
| Frequency | 60Hz |
| Display Colors | 1.07B (10bit) |
| Color saturability | 72% |
| Contrast ration(Typ) | 1200:1 |
| Viewing Angle | 178°(H/V) |
| Light source | DLED |
| Brightness | 350cd/m2 |
| Life Span | ≥30000 /Hrs. |
| Audio-video parameters | |
|---|---|
| Speaker | |
| Soundtrack | 2.0 |
| Power | 2×15W |
| Touch parameter | |
| Touch specifications | Non-contact infrared sensing technology |
| Support Systems | Windows10 / Windows8 / Windows7 / WindowsXP / Android / Linux / Mac OS X / Chrome |
| Touch Points | 40 Points Touch |
| Min.Identifier | 2mm |
| Input mode | Opaque object (finger, pen, etc) |
| Respond time | ≤10ms |
| Touch depth | ±1mm |
| Writing height | ≤3mm |
| Writing display | Single Stylus pen two-colour |
| Output coordinates | 32767 (W) ×32767(D) |

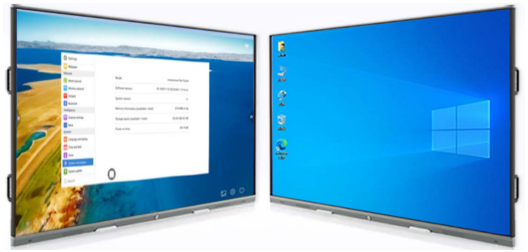

Dual System
Android and Windows dual system switching
Android 11.0
Windows 7/10/11
Dual OS Android + Windows for option
Win7, Win10, Win11 and Android systems can be selected by you to meet your needs
Support multiple document formats
| System | |
|---|---|
| System Version | Android 11.0 |
| CPU | Quad Core A55 |
| GPU | Mali G52MP2 |
| RAM | 4GB |
| ROM | 32GB |
| Wireless | |
| Bluetooth | |
| Version | 5.0 |
| Working Frequency | 2.4GHz |
| Remark | Via the wireless module SI07B |
| Wi-Fi | |
| Version | 802.11ac/b/g/n/a/ax |
| Working Frequency | 2.4GHz/5GHz |
| Working Distance | 0~10m |
| Remark | Via the wireless module SI07B |
| I/O Interface | |
|---|---|
| HDMI IN | 3（on board 2, front 1） |
| HDMI OUT | 1 |
| USB 2.0 | 1 |
| USB 3.0 | 4（on board 2,front 2） |
| TOUCH | 2（on board 1, front 1） |
| VGA IN | 1 |
| AUDIO IN | 1 |
| AUDIO OUT | 1 |
| SPDIF | 1 |
| RS232 | 1 |
| TYPE-C | 1 (front) |
| RJ45 OUT | 1 |
| RJ45 IN | 1 |
| Front small board interface | 2*USB3.0+TYPE-C+TOUCH OUT+HDMI IN |
| Power | |
|---|---|
| Voltage | 100-240V～ 50/60Hz 4A |
| Max. power consumption | 400W |
| Standby power consumption | ≤0.5W |

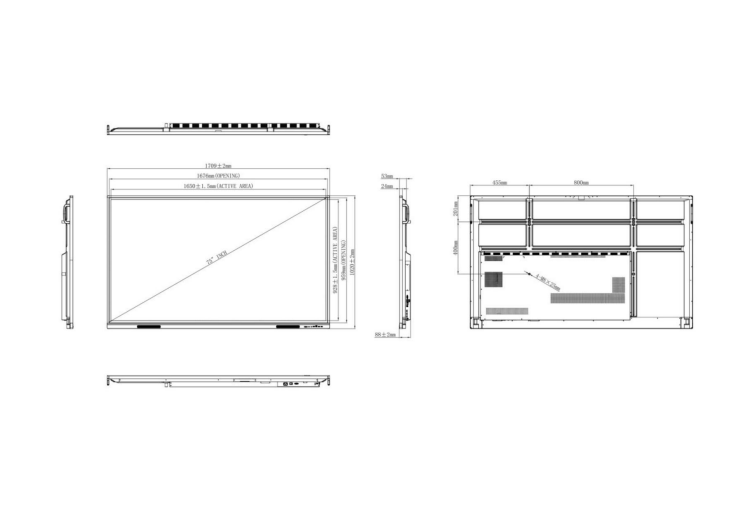

| Structure | |
| Bare dimension | 1709×1020×88mm |
| Packing dimension | 1860×220×1160mm |
| Machine+wall mount thickness | 118mm（WIB9060G） |
| VESA hole site | 800×400mm |
| Wall mounting screw specifications | M8×25mm |
| Net weight | 47.30KG |
| Gross weight | 58.30KG |
| Accessories | |
| Power cord | ×1 |
| Stylus pen | ×2 |
| Wall moun | ×1 |
| Operation manual | ×1 |
| Environment | |
|---|---|
| Working temperatur | 0℃~40℃ |
| Working humidity | 10%~90%RH |
| Storage temperature | -20℃~60℃ |
| Storage humidity | 10%~90%RH |
| Working Elevation | More Than 5000m |
| Standard module | |
| WIFI module model | SI07B |
| Optional module | |
| OPS model | OPS42A |
Our Disclaimer
- Due to product configuration and manufacturing process, actual body size/body weight may vary, pleaserefertotheactual product.
- The product images in this specification are for illustrative purposes only. The actual product effect (includingbutnotlimited to appearance, colour and size) may vary slightly
- Please refer to the actual product.
- In order to provide accurate specifications as far as possible, the text expressions and pictures in this specificationmaybeadjusted and revised in real time.
- The product specification may be adjusted and revised in order to match the actual product performanceandspecifications.
- In the event that such changes and adjustments are necessary, no special notice will be given
Packaging Process

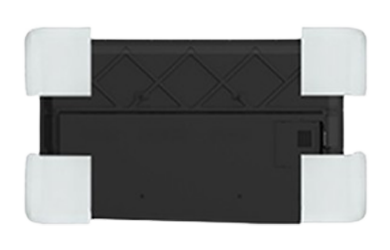

EPE/EPS

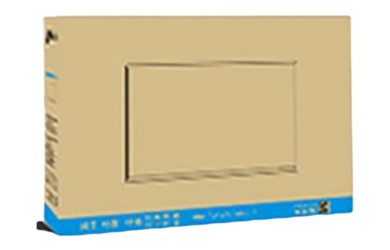

Corrugated Box

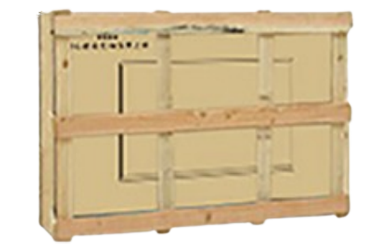

Wooden Frame
Packaging List
Interactive Whiteboard
Wall Bracket
Remote Control
Writing Pen
Antenna
