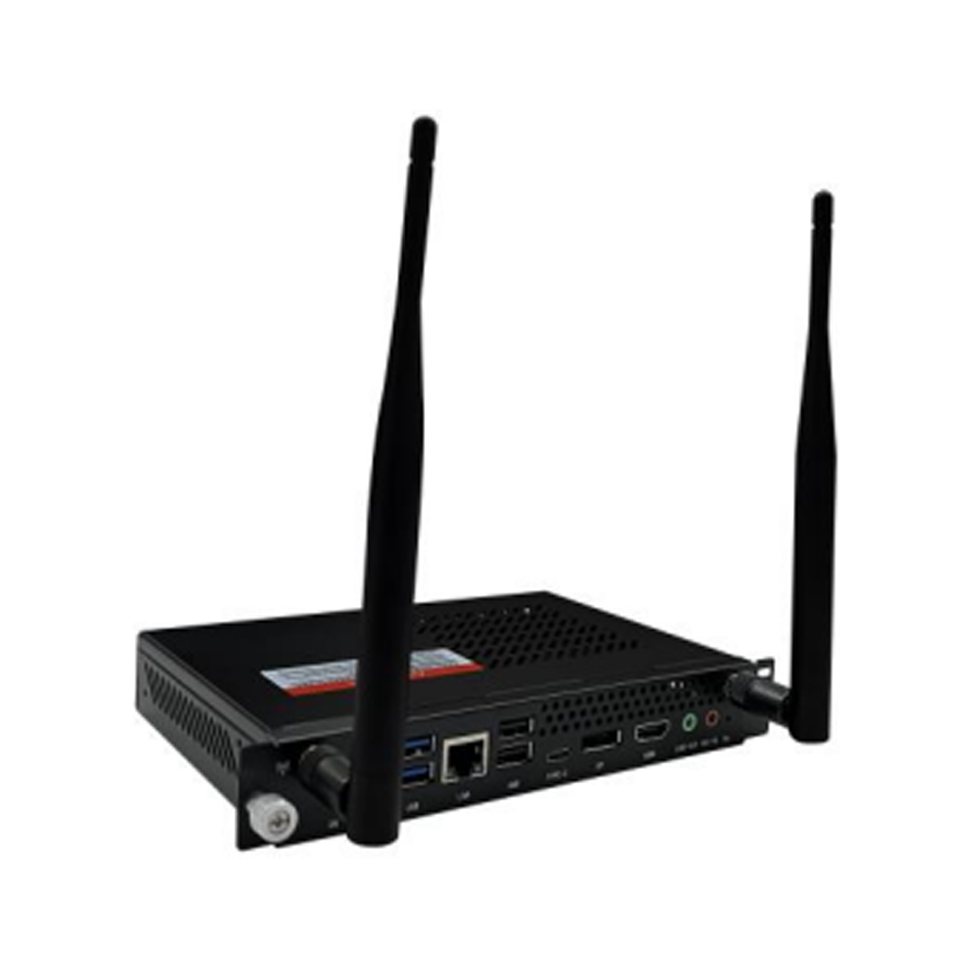

OPS Computer Mini
( i3 , i5 . i7 )

OPS (Open Pluggable Specification) is a computing standard for the modular design of small form-factor computing devices, such as digital signage players and small form-factor PCs. The OPS standard provides a standardized interface for connecting these devices to display panels, making it easier for manufacturers to create and integrate these devices into display solutions.

The OPS Computer Accessories Mini refers to mini-PCs or computing devices that conform to the OPS standard. These devices are small in size and can be easily plugged into a display panel to provide computing capabilities for the display. They are commonly used in digital signage, kiosk, and other applications where a compact, low-power computing solution is needed. The “Mini” designation indicates that the device is compact in size, compared to full-sized OPS computing devices.

OPS Computer Mini ( i3 , i5 . i7 )

Functional features

  • Intel ® OPS Specification
  • Support Intel ® Tiger Lake-U series processor
  • On board 80 pin high-speed connector
  • Support dual channel DDR4 memory
  • Support M.2 interface, NVMe/SATA
  • M.2 interface, Wifi, Bluetooth
  • Support scheduled boot, fast restore backup, PXE function
#
OPS Computer Mini ( i3 , i5 . i7 )

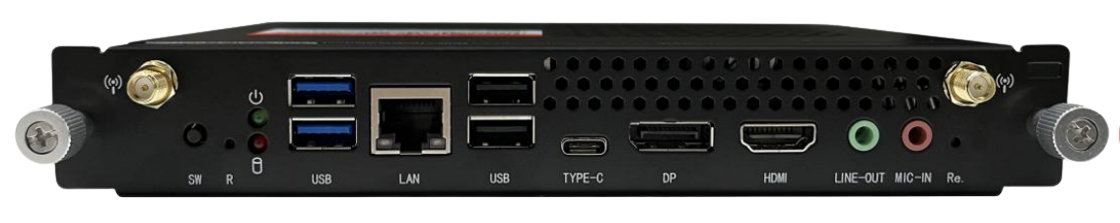

I/O Interface

OPS Computer Mini ( i3 , i5 . i7 )

I51100 OPS Standard Module

Packaging information
WIFI antenna x2
Product configuration information
Model CPU Base Frequency Cores/Threads Memory Storage
S211UB5240 000 i5-1135G7 2.40 GHz 4/8 No No
OPS Computer Mini ( i3 , i5 . i7 )

Description & Specification

CPU Intel® Tiger Lake-Useries processor
Chipset Intel®SOC
Memory dual channel DDR4 memory
Storage 1 x M.2 NVMe/SATA
Graphics Intel® Iris® Xe Graphics
WiFi 1 x M.2 2230 PCIe/USB
LAN Intel® i219V Gigabit Ethernet
Audio Realtek ALC269
I/O Interface 1 x 3.0 Type-C
1 x Power LED+HDDLED
2 x USB3.0 Type-A
1 x RJ45
2 x USB2.0 Type-A
1 x 3.5mmsound output
1 x 3.5mmsound
1 x HDMI2.0
1 x Systemrecovery button
1 x DP1.4
1 x Reset/clear CMOS button
1 x Shutdown/Start upbutton
2 x antenna
OPS 80-pin Interface HDMI2.0,DP1.4 2 x USB2.0,1xUSB3.0,UART,Audio,Recovery,etc
Power Input 12~19V 4.74A DC Input,MAX90W
OS Support Windows 10/11s
Environment Operating Temp:-10℃~60℃Operating Humidity :10%~90%,non-condensing Storage Temp. :-20℃~70℃
