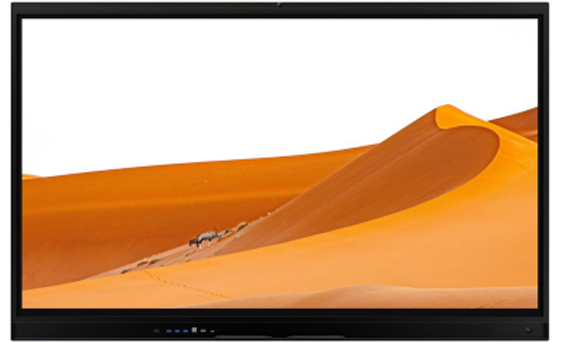

ASIATOUCH 98" Interactive Flat Panel
Zero gap bonding"technology,which eliminates visual bias caused by light refraction. Secure integrated design, aluminum alloy 16.8mm ultra-narrow bezel; front pen storage slot on the face of the machine, easy to place pens.
Android module: built-in flagship high configuration Android operating system, 4KUI point-to-point display, More delicate images; support 8K video decoding, more suitable for remote ultra-clear video conferencing; WiFi and hot spot coexistence; blue light reductionfunction ,.eye protection.
The whole machine is designed with removable multimedia terminal mounting slot, supporting Android and PC OPS module, no external connection cable, easy maintenance; Intelligent identification of signal sources: the device automatically switches to the channel when signal input; USB3.0, ultra-high definition camera, transmission without delay; front USB3.0 can follow automatically under OPS or Android channel. HDMI2.0 out 4Kpoint-to-point output under any channel; Free to set the boot channel; After opening USBpermission, lock the USB port, when inserting the U disk, you need to entering the password to open the USB drive.
Black screen energy-saving function: the LCD backlight can be turned off with one keywithout turning off the power of the whole machine, it can save above 80%of power consumption of the whole machine. Support screen projection of all systems of mobile phone, PC, tablet , you can project the screen of mobile phone, PC, tablet screen to the big screen in real time through the software, support the maximum nine split screen, support extended desktop function, support the ppt speaker mode.
Screen down: slide three fingers down in the channel screen to move the channel screendown a certain height, the content of the channel screen remains normal touch when the screen is moved down
Zero Bonding Features
Groundbreaking Zero Bonding
The Upgrade of the bonding technology makes the air gap between the covered glass and the LCD panel almost invisible to improve the overall performance of the display to another level, physically and technically.
Higher readability & smoother writing
Zero bonding technology brings us a higher-definition visual experience by reducing parallax and enhancing readability. In addition, high proximity between fingertip and writing trail makes writing smoother as natural as you are writing on the paper.
Benifit of Android 11 System
Flagship system
Super CPU configuration; 1000M global Internet, support one LAN cable for dual internet access; full channel support Touch USB follow
Active "smart" pen
High quality, beautiful appearance intelligent pen, Shortcut key customization, multi-systemcompatibility, arbitrary switch, delicate writing, PPT presentation, mouse/laser red dot/magnifyingglass/spotlight intelligent motion sensing.
Multiple meetings
1000M network, video meeting fluent transmission; support 8K video decoding, make remote videomeeting easy and convenient; local meeting with comments and sharing, file content canbeautomatically classified.

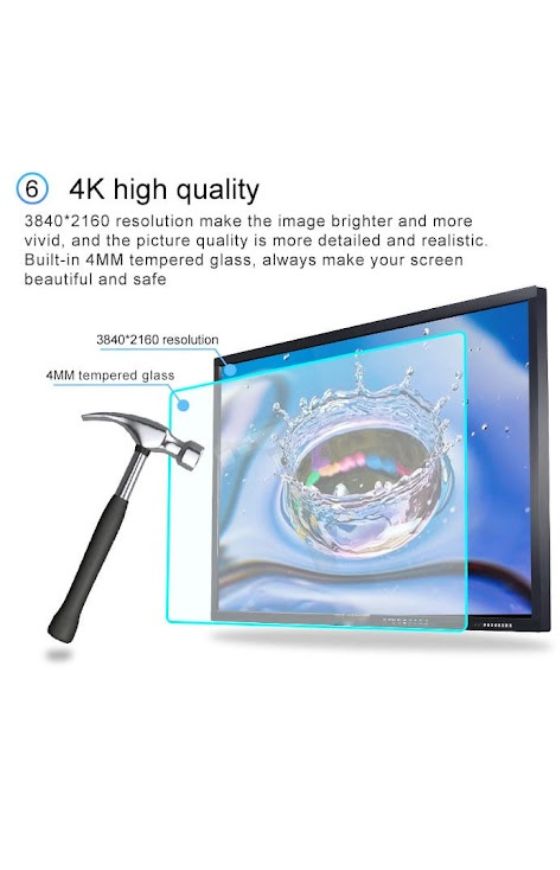

Ultra - clear display
The 4K UI image shows the charm of feeling details. The handwriting is delicate, clear andnon-jagged.
Write at random
1mm high-precision touch; support 20-point touch, 3mm writing depth, double pen tip thickness recognition, writing with handwriting. Single-point writing supports two-point zoom-out, zoom-in, drag and switch freely.
Description & Specification
| Display Parameter | |
|---|---|
| LCD Size | 98inch |
| Panel purchase standard | A Leve |
| Light source | LED |
| Resolution | 3840 x 2160pixels |
| Brightness | 500cd/m²(typ.) |
| Contrast ration | 1300:1(typ.) |
| Pixel pitch | 0.5622 (W) x 0.5622(H) |
| Frequency | 120Hz |
| Viewing Angle | 178°(H)/178°(V) |
| Life span | 30,000hrs(min.) |
| Response time | 8ms |
| Color saturability | 70% |
| Visual area | 2158.848×1214.352 mm |
| Display Colors | 1.06B |
| Android System Properties | |
|---|---|
| Processor | |
| CPU | A73*4 + A53*4 (4 Core+4 Core) |
| GPU | G52*8(8 Core) |
| Working frequency | 2.2GHZ |
| Number of cores | 8 Cores |
| Memory | DDR4: 8GB/eMMC:128GB |
| System version | Android11.0 |
| Chip solution | Amlogic A311D2 |
| WiFi | 2.4G/5G |
| Power PW.490W2.561 | |
| Voltage | Rated AC 100-240V~Max 90-264V~50/60Hz |
| Max. power consumption | ≤550W |
| Standby power consumption | ＜0.5W |
| Speaker | 2 x 15W(max) |
| Power supply (AC) input | 100-240V |
| Power switch | Rocker Switch |
Dual System
Android and Windows dual system switching
Android 11.0
Windows 7/10/11
Dual OS Android + Windows for option
Win7, Win10, Win11 and Android systems can be selected by you to meet your needs
Support multiple document formats
| Environment | |
|---|---|
| Working temperature | 0℃～40℃ |
| Storage temperature | 20℃～60℃ |
| Working humidity | 10%～90% No condensation |
| Input Interface | |
| RS232 | 1 |
| TYPE-C | 1（USB3.0） |
| Rj45 IN | 1 |
| DP TOUCH | 1 |
| DP | 1 |
| HDMI IN | 2 |
| HDMI TOUCH | 1 |
| MIC IN | 1 |
| USB2.0 | 2 |
| USB3.0 | 2 |
| Output Interface | |
|---|---|
| RJ45 OUT | 1 |
| HDMI OUT | 1 |
| Earphone/L ine-out | 1 |
| Coax OUT | 1 |
| OPS(Optional） | |
| USB | USB2.0 x 2;USB3.0 x 2 |
| LAN Interface | 1 |
| HDMI OUT | 1 |
| LINE-OUT | 1 |
| MIC-IN | 1 |
| OPS DC | |
| 12V-18V 5A | 60W |
| Key | |
| touch button | Touch button + three status indicators |
| Camera | |
| 4800W | With up to 48 million photo andvideopreviewfunctions, it can also support 1080P60frame |
| Microphone | |
| 8 array microphones | Pickup distance: 5-10 meters |
| Front Interface | |
|---|---|
| USB3.0 | 3 |
| TYPE-C | 1 |
| FRONT HDMI Touch | 1 |
| HDMI IN | 1 |

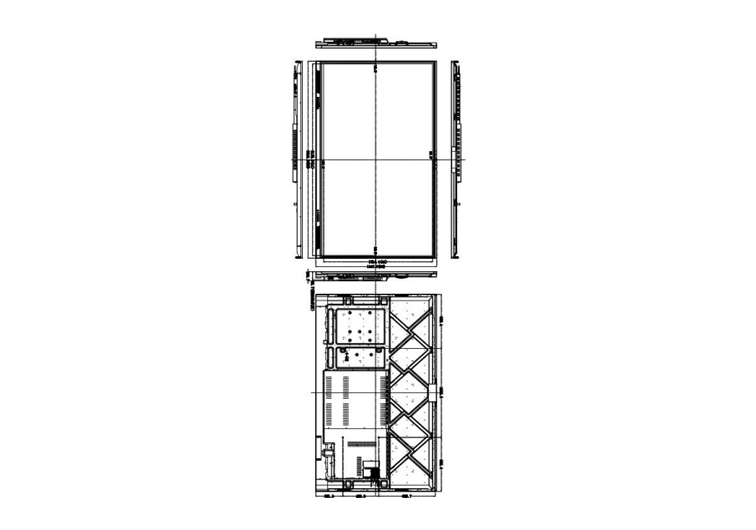

| Structure | |
| Net weight | 92±1kg |
| Gross weight | 129±1kg |
| Bare dimension | 2216.8*1347.9*105.7mm |
| Packing dimension | 2525*435*1745mm（includingpallet） |
| Shell material | Aluminum alloy frame, sheet metal back |
| Shell color | Black |
| Width of frame（T/B/L/R) | 33.2/67.2/16.8/16.8mm |
| VESA hole site | 4-M8 Screw hole 1000*400mm |
| Language | |
| OSD | CN,EN etc |
| Touch parameter | |
|---|---|
| Touch specifications | Non-contact infrared sensing technology, support 20points writing |
| Glass | 4MM, Physical tempered Mohs level 7 |
| Glass transmittance | ＞88% |
| Frame material | Aluminum alloy frame，PCBA |
| Touch accuracy | ≤1mm |
| Touch depth | 3±0.5mm |
| Input mode | Opaque object (finger, pen, etc) |
| Theoretical hits | Same position 60 million times above |
| Light resistance | Incandescent lamp (220V, 100W), withavertical distance of more than 350mmandsolar Illumination from sunlight up to 90,000 Lux |
| Power supply | USB(USB power supply） |
| Supply voltage | DC 5.0±5% |
| Accessories | |
|---|---|
| Remoter | 1 |
| Power cord | 1（1.5M） |
| Dual-head stylus | 1 |
| Operation manual | 1（A4 Folding） |
| Built-in E-manual | 1 |
| Battery | 1(pair） |
Our Disclaimer
- Affected by product configuration and manufacturing process, the actual machine size/body weight may be vary, please refer to the actual product.
- The product pictures in this specification are for illustration only, the actual product effects (including but not limited to appearance, color, size) maybeslightly different, please refer to the actual product.
- In order to provide accurate specifications as much as possible, the text description and picture effects of this specification may be adjusted andrevisedinreal time to match the actual product performance, specifications and other information
- In the event that the above-mentioned modifications and adjustments are indeed necessary, no special notice will be given.
Packaging Process
EPE/EPS
Corrugated Box
Wooden Frame
Packaging List
Interactive Whiteboard
Wall Bracket
Remote Control
Writing Pen
Antenna
